Straw Specification

Standard length: 150-260mm

Standard Diameter: 5-12mm

Packing length: 210-315mm

Packing Model

Paper type: wrap paper

Sealing type: 3 side sealing

Paper width: 28-50mm

Production Speed

With printing ：300pcs/min
Without printing＞500pcs/min

Servo Driving motor

Traction-side sealing: 1set

Cutting knife: 1set

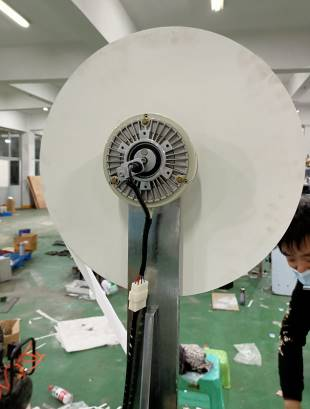

Paper Unwinding Frame

Tension adjust：Analog automatic tension control

Wrap paper roller core size：3inch，4.7inch

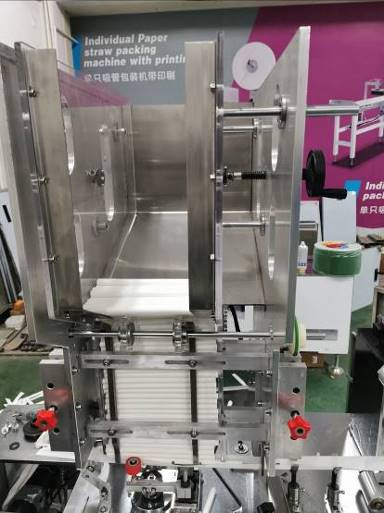

Straw feeding hopper

Material :Stainless steel frame，
Plexiglass: Adjustable to match straw length

Straw feeding device：induction and swing arm

Feeding model：Cam drives the rubber roller to clamp the material

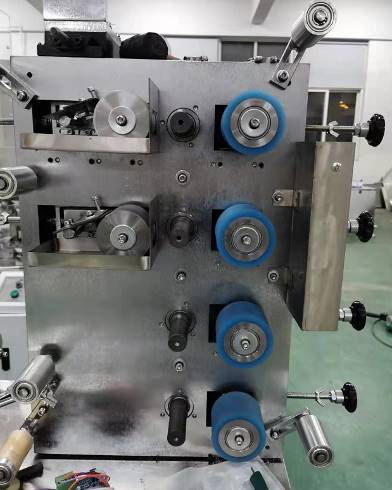

Printing Unit

ingle/Double Color

Driving by servo motor *2

Traction unit：1sets, rubber roller and chrome plated roller

Printing unit：Ink container, anilox roller, doctor blade, printing cylinder, rubber roller

Dry unit：1SET , by hot air, with temperature

color register：By manual

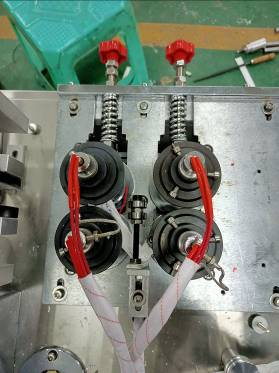

Sealing and Cutting Parts

Lengthways sealing：Sealing roller-1 couple，pressure adjusted by manual

Horizontal：Sealing roller- 1 couple，pressure adjusted by manual, with cutting knife-one couple

Material：mould steel

Conveyor Belt

1set， Synchronous reduction motor+ controller

Counter dam-brush: one set, lifting by pneumatic cylinder

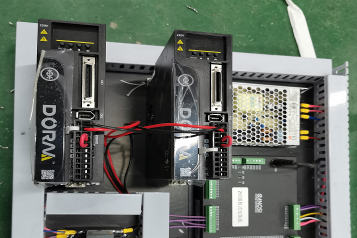

Controller


Counter：1set，HUALI Brand

Controlling inverter: 1.1KW Schneider

Temperature controller：1set，

Total Power (Kw)

5(220V)

Over size (mm)

1900×1000×1600 (L×W×H)

Weight (Kg)

500
