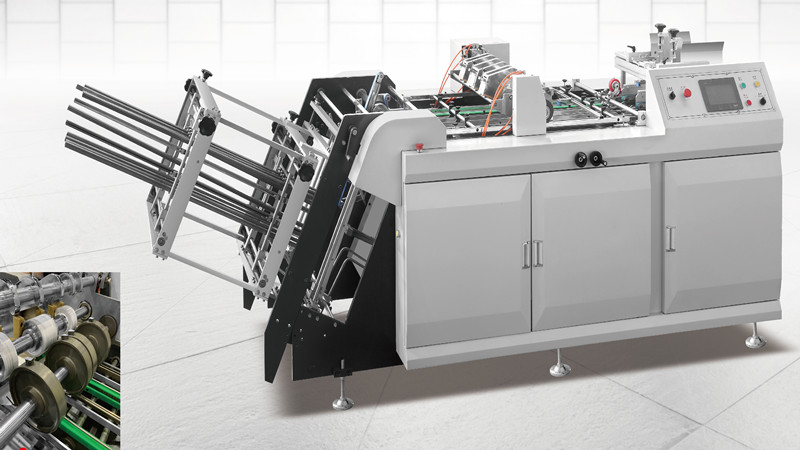

RW-1200 Carton erecting machine

Email: info@cuplidmachine.com

Tel: +86-18106728031

Whatsapp: +86-18106728031

RW-1200 Carton erecting machine

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Characteristics

International:

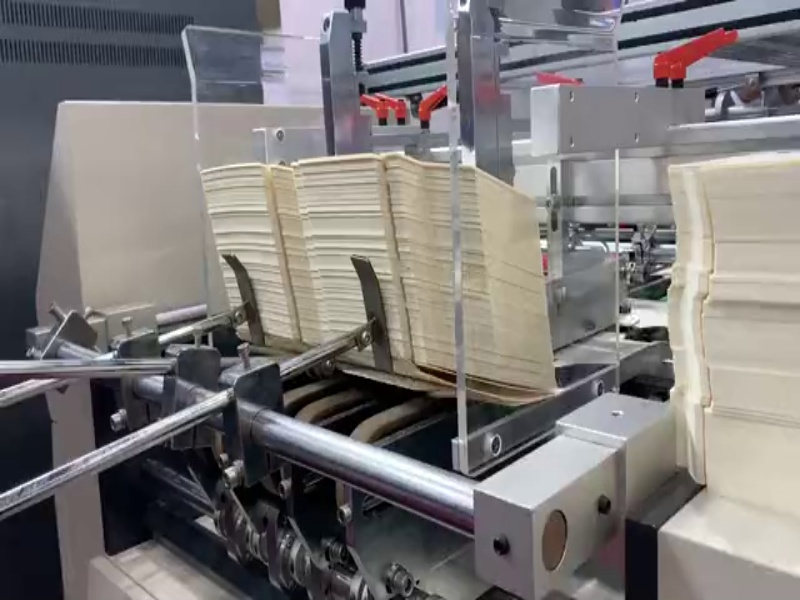

Carton erecting machine is an ideal equipment to produce paper box such like hamburger box, chips box, fried chicken box, kids meal box, take-away box, triangle pizza box, etc.

With firm structure, high quality, low noise and high efficiency. It has paper feeding unit, adjusted unit, glue unit, forming unit, finished products collecting unit and also counting unit.

Technical parameter

Model	RW-1200
Paper Material	180—600gsm cardboard /coated paper/ corrugated paper
Max. Liner speed	80—180pcs/min (different paper box shapes, he speed is different )
Paper thickness	Max 1.6mm
Carton size	Length: 100-450mm width:100-580mm height: 15-200m
Glue Material	Water-base cold glue
Paper size	Max: 650mm(W)*490mm(L)
Max box size	450mm*400mm
Min box size	50mm*30mm
Air source	2kgs/cm²
Dimension(mm)	370013501450mm
Voltage	380V 50Hz / 220V 50Hz
Total power	4.5kw
Machine weight	1400kg

Machine configuration list:

Mane	Brand
Screen	Schneider
PLC	Schneider
Servo driver	Schneider
Breaker	Schneider
Terminal	Schneider
AC contactor	Schneider
Relay	Schneider
Switch power supply	EAC-CHINA
Buzzer	ZXDZ-CHINA
