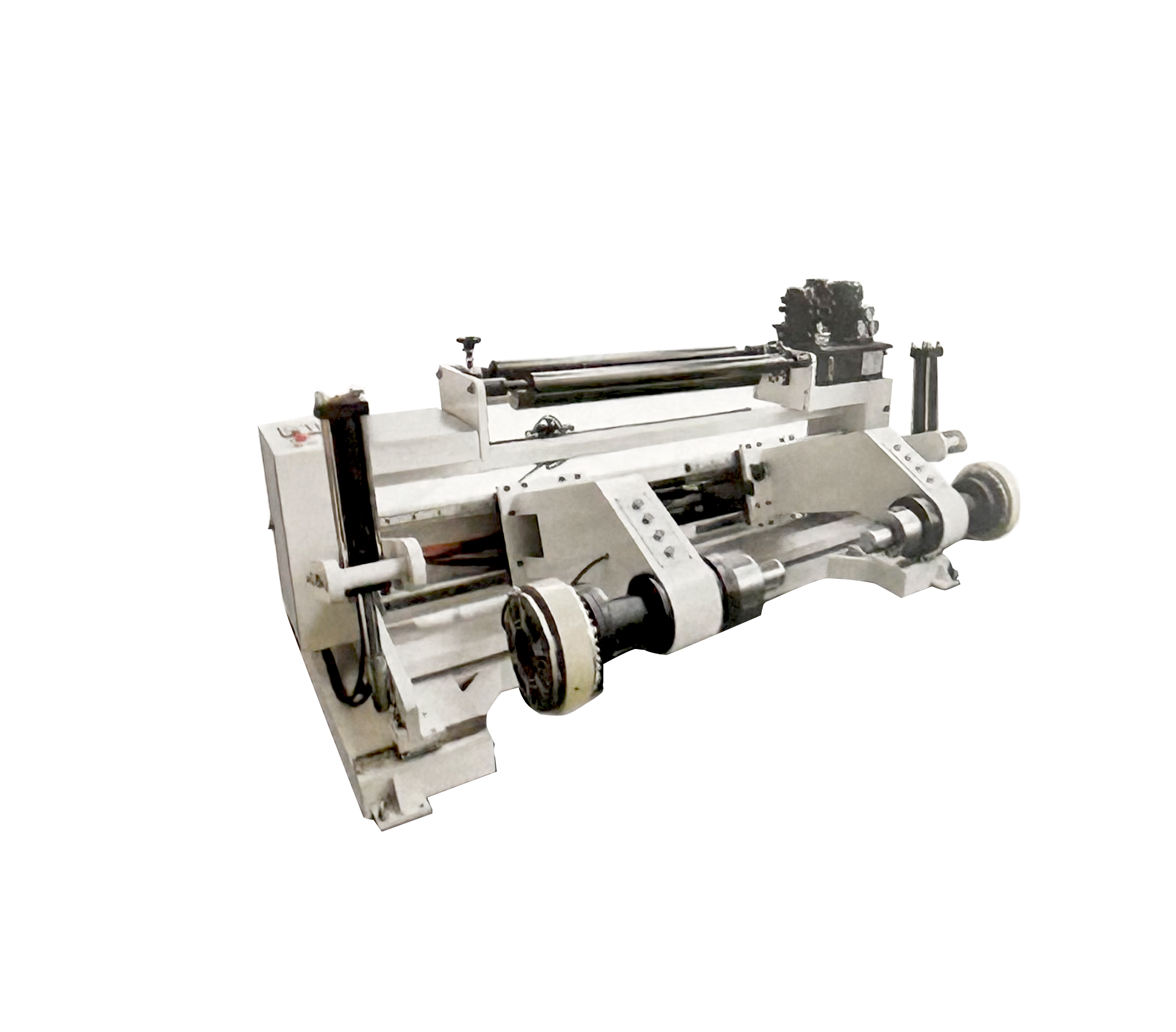

RW-1300 Automatic Slitting Machine
Introduction:
The machine is suitable for slitting big jumbo roll materials, such as paper, double adhesive paper, straw paper, copperbaord paper, white board, aluminum foil, PVC and plastic film, etc. The machine is widely apply to paper products processing industry, printing and packaging industry.
Main technical parameters:
|
Model |
RW-1300 |
|
Max. web width |
1300mm |
|
Max. unwinder diameter |
1400mm |
|
Max. rewinder diameter |
1000mm |
|
Min. rewind web width |
30mm |
|
Slitting speed |
30-500m/min |
|
Precision of slitting |
±0.2mm |
|
Cutting thickness |
15-500g/㎡ |
|
Total power |
26kw |
|
Machine weight |
4500kgs |
|
Overall dimension |
4500×2800×1950mm |
