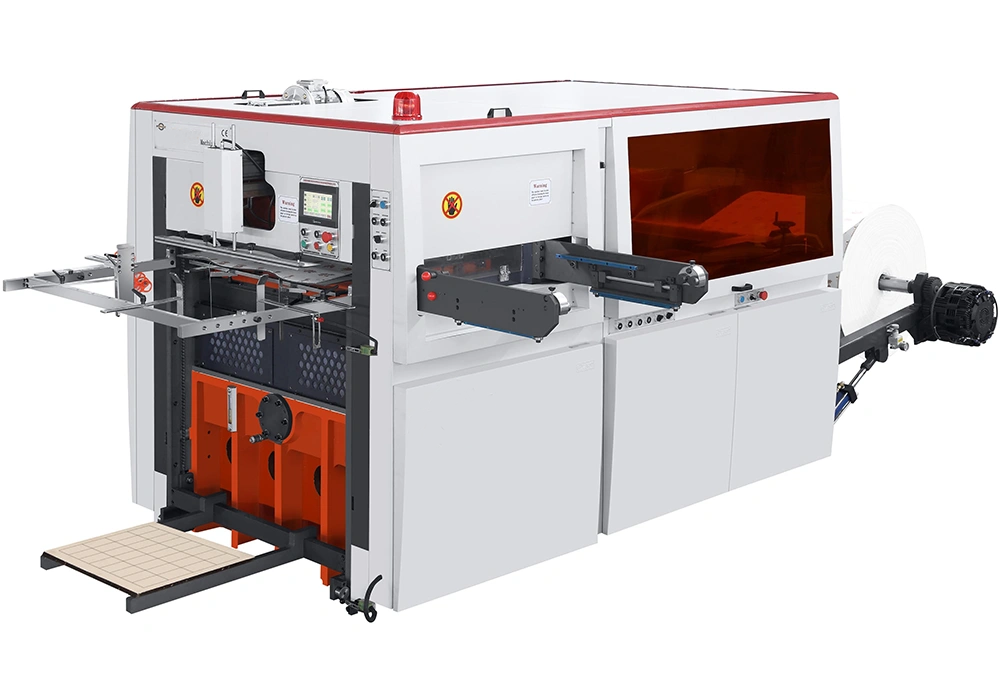

RW-1200X640 Roll Die Cutting Machine
WT-MQ series automatic reel (high-position) die-cutting machine is based on international advanced technology, with high stability, high safety performance, high-precision finished products, and is widely used in printing, packaging and paper products industries. It adopts microcomputer and man-machine control interface. , Servo positioning, AC frequency converter, automatic counting, manual pneumatic lock plate, photoelectric correction system, electromagnetic clutch, centralized oil lubrication, overload protection and unique transmission device. Ensure smooth paper feeding, accurate positioning and smooth paper feeding. The key components and control devices of the whole machine are all imported. The device can achieve stable pressure, accurate positioning, stable operation, safety and reliability of the whole machine.
|
Model |
WT-970x640 |
WT-970X550 |
WT-1080X640 |
WT-1200X640 |
|
Max cutting area (MM) |
940x600 |
940x510 |
1050x6000 |
1170x600 |
|
Cutting precision (MM) |
±0.15 |
|||
|
Paper gram weight( g/㎡) |
120-400 |
120-600 |
120-600 |
|
|
120-600 |
||||
|
Production speed |
160-200 |
|||
|
Air pressure requirement |
0.5Mpa |
|||
|
Air pressure consumption |
0.25 |
|||
|
Max cutting pressure (T) |
180T |
300T |
||
|
300T |
||||
|
Weight (T) |
6T |
8T |
9T |
|
|
7T |
||||
|
Max roller diameter |
1600 |
|||
|
Total power (KW) |
12 |
|||
|
Dimension(MM) |
4500x2200x1800 |
4500x2500x1800 |
4500x2800x2000 |
|
 |
 |
||

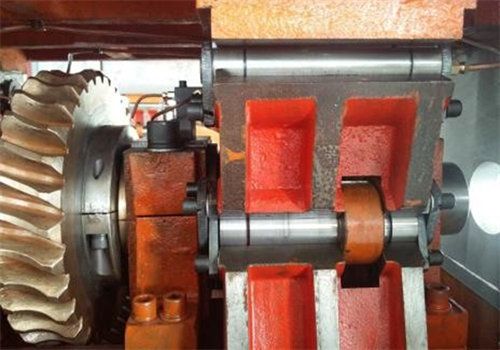

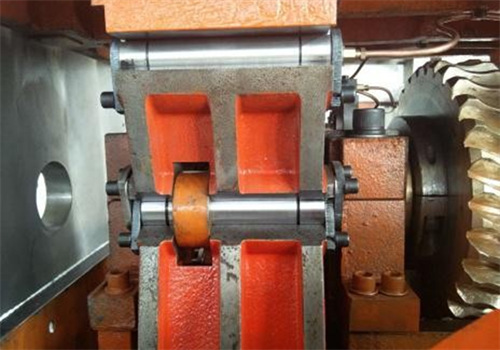

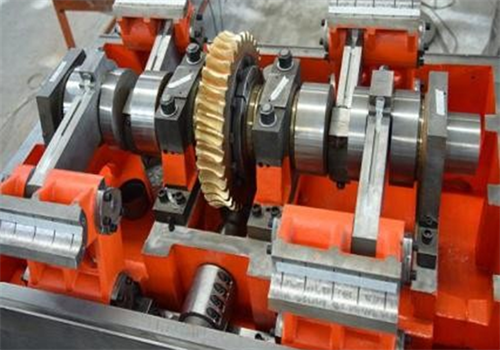

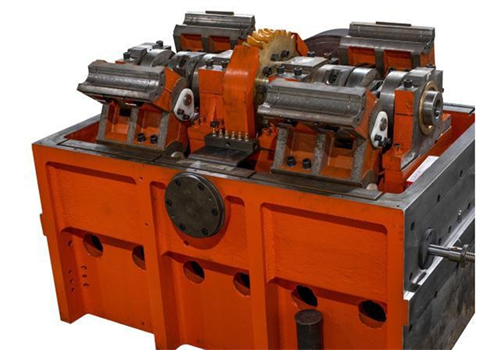

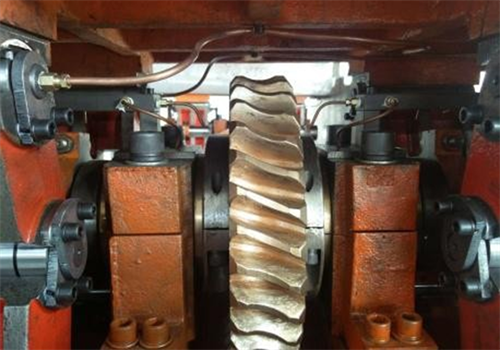

| Worm gear structure: a perfect worm gear drive system to ensure strong and stable pressure when the machine is running at high speed, accurate cutting, low noise, stable operation, and high cutting pressure. The main frame and movable frame top frame are all made of high-strength ductile iron. QT500-7 has the characteristics of high tensile strength, deformation resistance and fatigue resistance. | |||
 |
 |
 |
 |

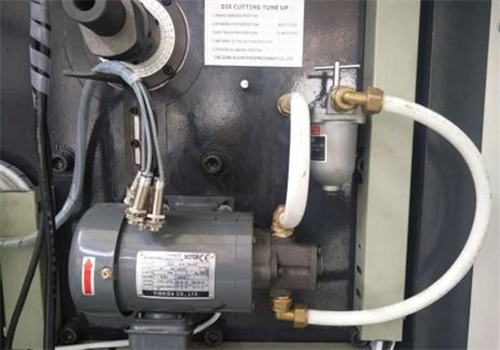

| Lubrication system: a forced lubrication system is adopted to ensure regular oil supply for the main drive, reduce friction, extend the life of the machine, and protect the machine when the oil pressure is low. A filter is added to the oil circuit to remove oil and a flow switch to monitor lack of oil. | |||
 |
 |
||

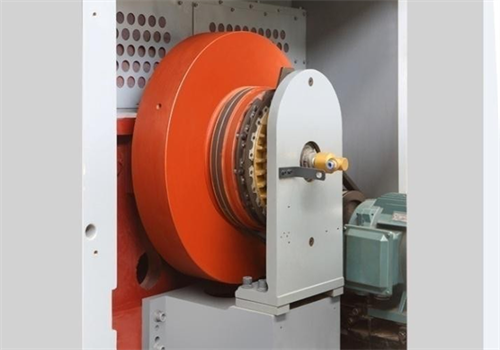

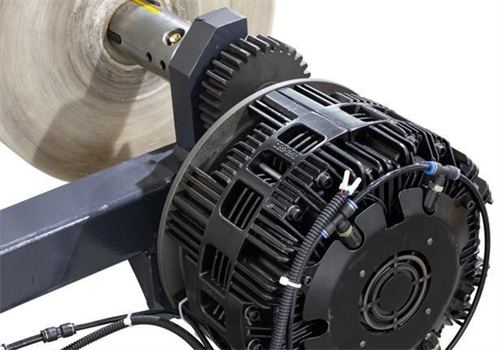

| Die cutting force is provided by 7.5KW variable frequency motor drive. It not only saves electricity, but also can realize stepless speed regulation, especially with the extra-large flywheel, which makes the die-cutting force strong and stable, and further reduces power consumption. Pneumatic clutch and brake: control the driving torque by adjusting the air pressure, with low noise and high braking performance. When the machine is overloaded, it will stop automatically, and the response is quick and responsive. | |||
 |
 |
||

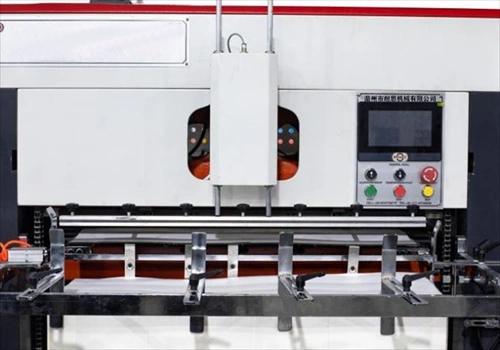

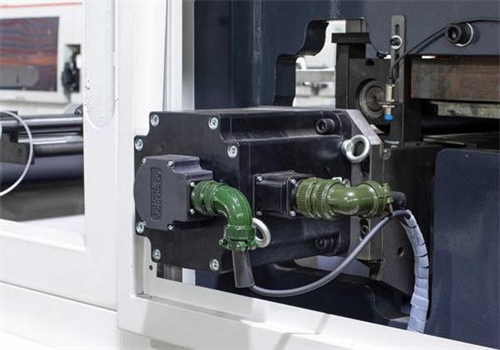

| Electronic control pressure: accurately and quickly realize die-cutting pressure adjustment, the pressure is automatically adjusted by the motor, and the four legs are controlled by the man-machine interface, which is very convenient and accurate. | |||
 |
 |
||

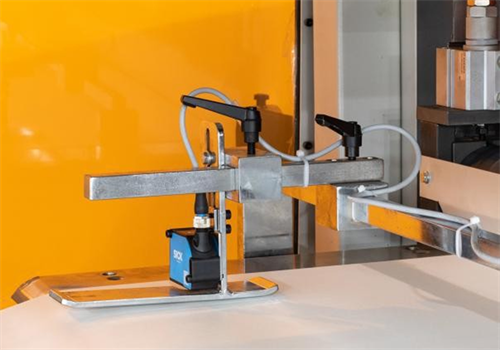

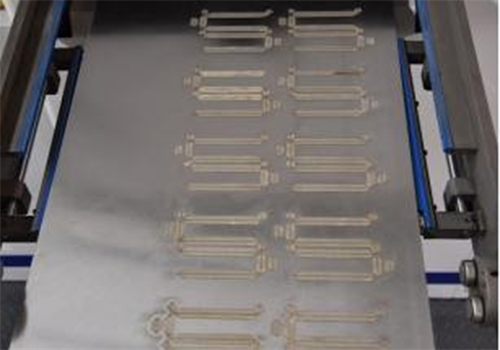

| Die- cutting can be performed according to the printed text and graphics, or directly without die- cutting. The stepping motor is matched with the photoelectric eye that can recognize the color to ensure the perfect fit between the die-cutting position and the graphics. The product can be die-cut only by setting the feed length through the microcomputer controller, no words and numbers are required. | |||
 |
 |
||
| Deviation correction device: The device is controlled by a motor, which can fix and adjust the paper to the correct position. (Left or right) | |||
 |
 |
||
| The die-cutting part adopts a pneumatic plate-locking device to avoid leaving the machine. Die-cutting plate: 65Mn steel plate heat treatment, high hardness and high flatness. The die- cutting knife board and frame can be taken out, saving time for plate changing. | |||
 |
|||
| Paper jam alarm: When the paper is jammed, the alarm system stops the machine. | |||
 |
|||

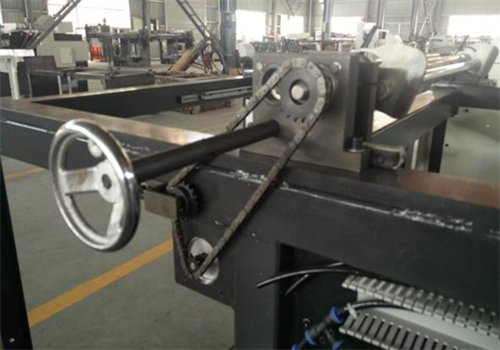

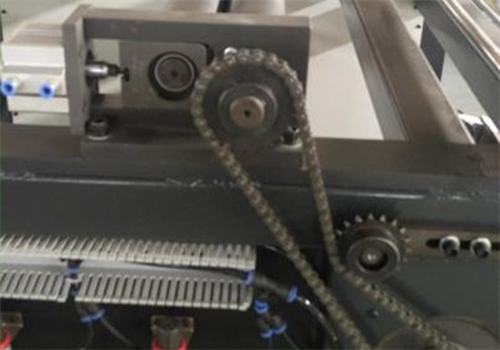

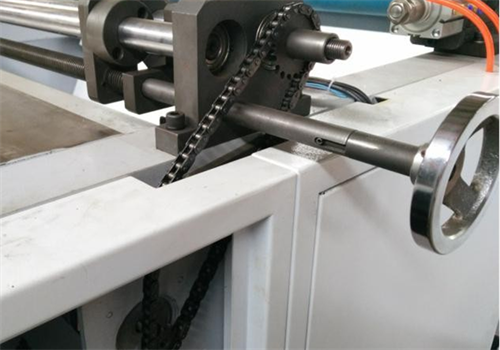

| Feeding device: adopts chain type pneumatic roller unwinding, tension control unwinding speed, hydraulic type, can bear more than 1.5T. The maximum roll paper diameter is 1.6m. | |||
 |
 |
||

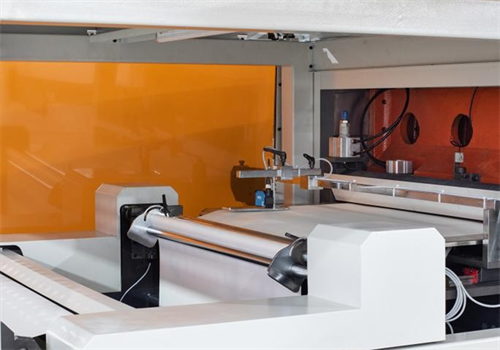

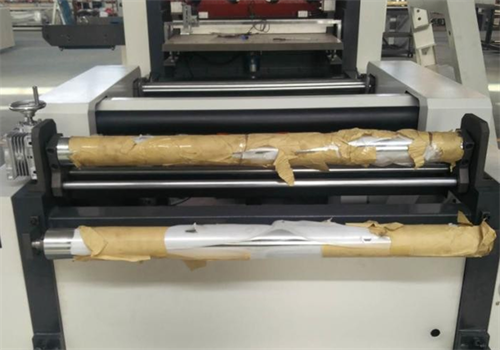

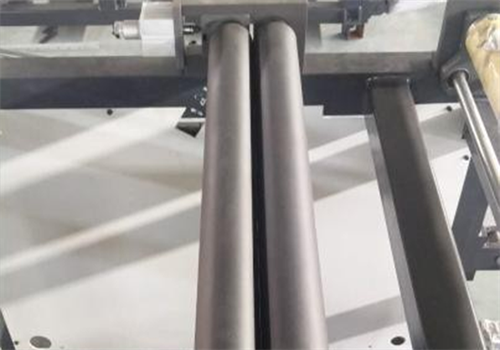

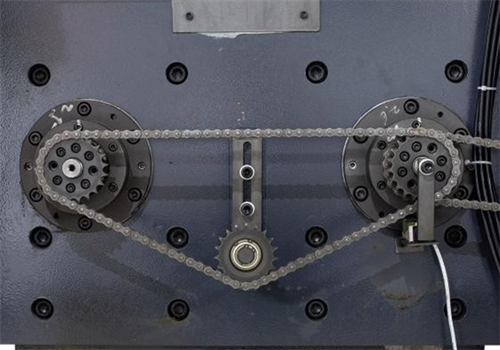

| Feeding: electric coil feeding, convenient and fast. The two rubber-coated rollers are controlled by a traction motor, so it is easy to make the paper advance automatically. | |||
 |
 |
||
| Automatically fold and flatten the corner materials at the paper core. Multi-level adjustment of folding degree is realized. No matter how the product bends, it can be flattened or refolded in other directions. |
|||
 |
|||
| Through the action of the physical induction switch, the finished product automatically drops, keeping the height of the raised paper unchanged, and the entire die-cutting process does not require manual paper fetching. | |||
|
Stepper motor |
Schneider |
|
Pressure adjusting motor |
Taiwan |
|
Servo driver |
Schneider |
|
Color Sensor |
Sick |
|
PLC |
Schneider |
|
Frequency converter |
Schneider |
|
All other electrical parts |
Schneider |
|
Photoelectric switch |
Leuze |
|
Main air cylinder |
AirTAC |
|
Solenoid valve and other parts |
AirTAC |
|
Pneumatic clutch |
China |
|
Main bearings |
Germany |
