Characteristics

International:

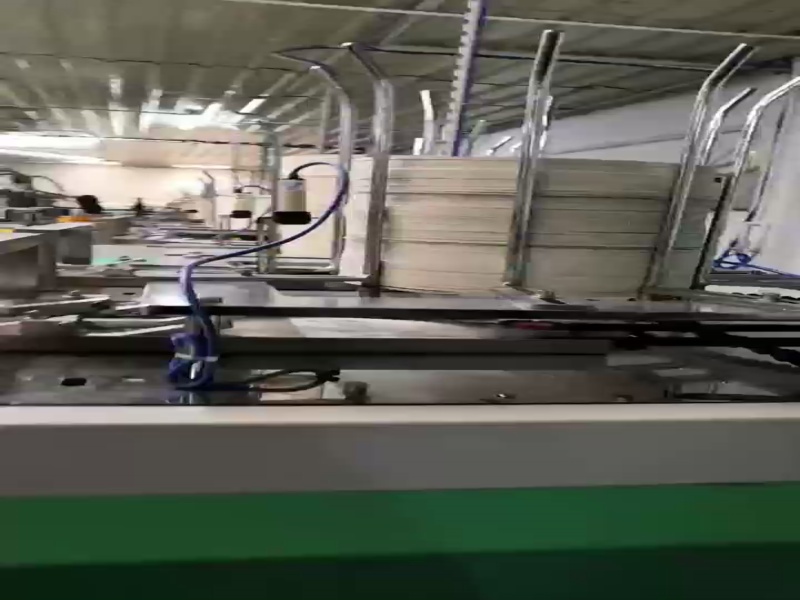

ML600Y type high-speed & intelligent paper plate machine adopts straight-line forming, which is paper feeding, forming and collecting in one straight line. Compared with the traditional paper plate machine, ML600Y has the advantage of stable forming, high efficiency and labor saving. ML600Y is hydraulic machine with double stations, two stations are controlled by different motors, which means two stations can work separately, realize that one machine can produce different sizes and shapes of paper plates at the same time.The machine main working principle is hydraulic system, the hydraulic system has the advantage of easy operating and stable forming. Machine uses PLC and whole processing  photoelectric tracking, machine works fully automatic,safely and intelligently, and can be directly connected to packing machine, supporting production line.

Technical parameter

Paper Plate Size

4-13”

Paper Grams

100-800g/m2

Paper Materials

Origin paper, whiteboard paper, white cardboard, craft paper aluminum foil paper or others

Capacity

 Double Stations 40-110pcs/min

Power Requirements

380V 50HZ

Total Power

8KW

Weight

1600kg

Specifications

3500×1300×1900mm

Air Supply Requirement

0.4Mpa, 0.3cube/min

Other Notes

Customize

Oil Cylinder

ML-80-150-5T-X

Cylinder Stroke

150mm

Components brand:

NO

SPARE PARTS

SUPPLIER

1

Hydraulic Motor

Zhejiang Zhonglong

2

Normally Closed Photoelectric

Shanghai Qide

3

Stainless Steel Heating Pipe

Jiangsu Rong Dali

4

Oil Pump

Taiwan

5

Counter Switch

Yueqing Tiangao

6

Normally Open Photoelectric

Shanghai Qide

7

Solenoid Valve

Taiwan Airtac

8

Bearing

Harbin

9

Temperature Sensor

Shanghai Xingyu

10

AC Contactor

Yueqing Tiangao

11

Frequency Transformer

Delta

12

(Touch Screen)

Delta

13

PLC

Delta
