RW-800 Paper bowl machine
Introduction:

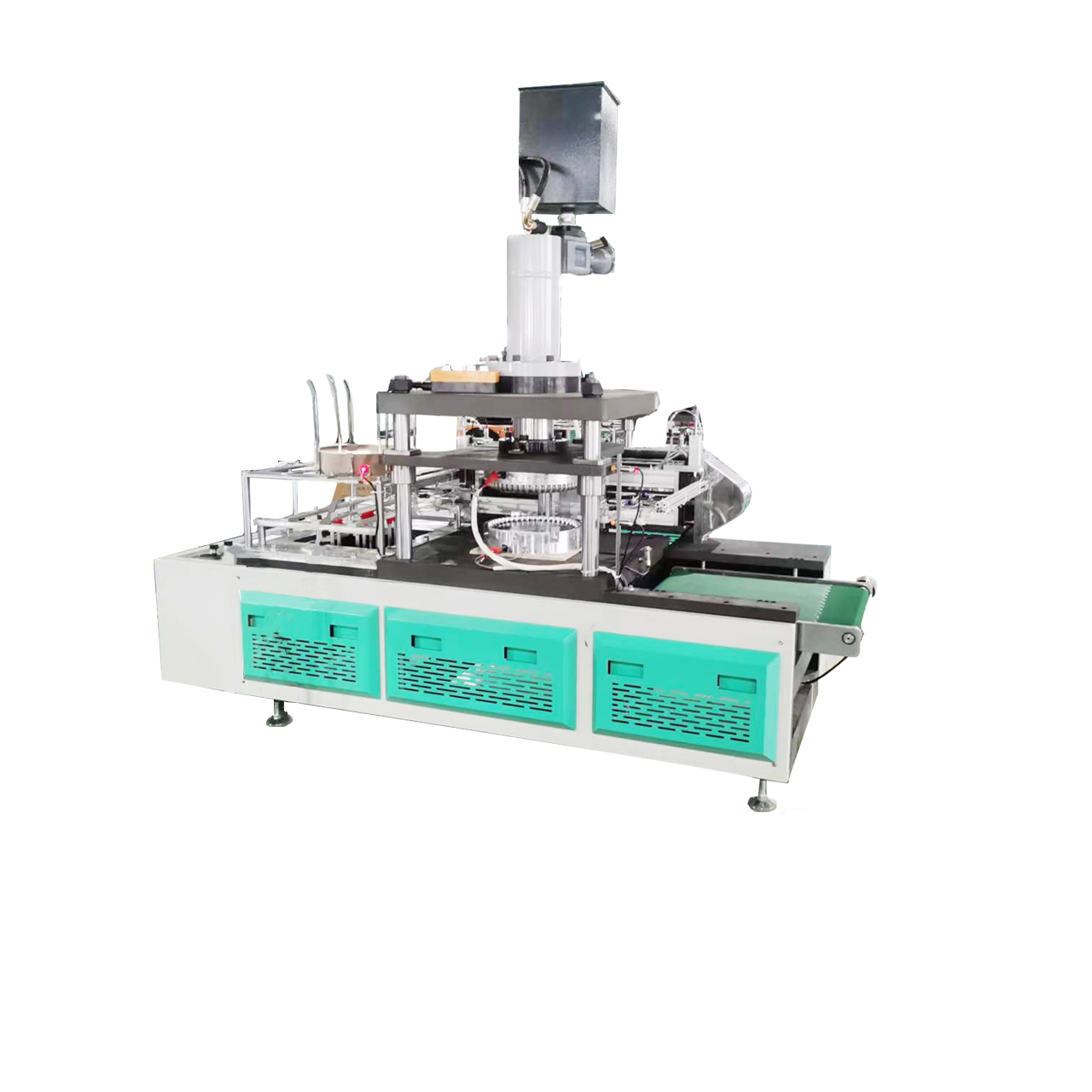

ML800 Full Automatic Medium-Speed Paper Bowl Forming Machine is developed and designed according to market demands. ML800 reassembles the principle of combination of hydraulic and mechanical. Compared with the traditional automatic paper plate machine, ML800 has higher dish ejecting rate ,and is easier to operate and maintain.

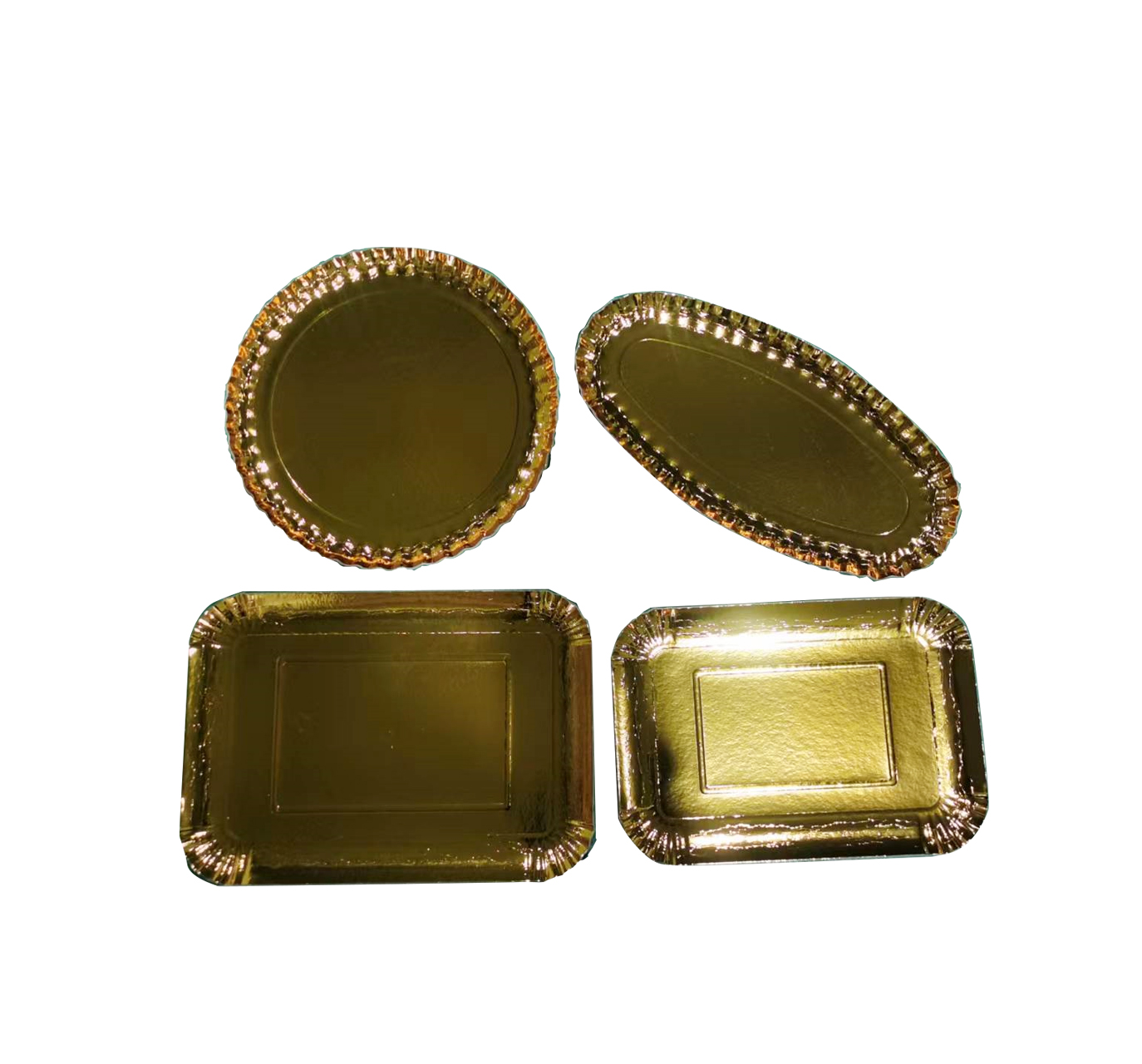

ML800 is widely used in productions which use original papers or aluminum foils as raw materials. Different specifications can be produced by changing the mould, round or square plates, etc, especially for deep paper trays, it overcomes the hard collection problem.
|
Model |
ML800 |
|
Paper Plate Size |
Round diameter 100-400mm Square 400(L)×300(W)mm |
|
Capacity |
15-35Pcs/min |
|
Power Requirements |
380V 50HZ |
|
Total Power |
7.5KW |
|
Weight |
2000Kg |
|
Specifications |
2200×1100×2200mm |
|
Raw Material |
100-800g/m2(original paper, white paperboard, white |
|
Air Source |
Working pressure0.4Mpa Working |
Main technical parameters of cylinder:
ML-80-150-5T-X
Oil cylinder stroke:150mm
