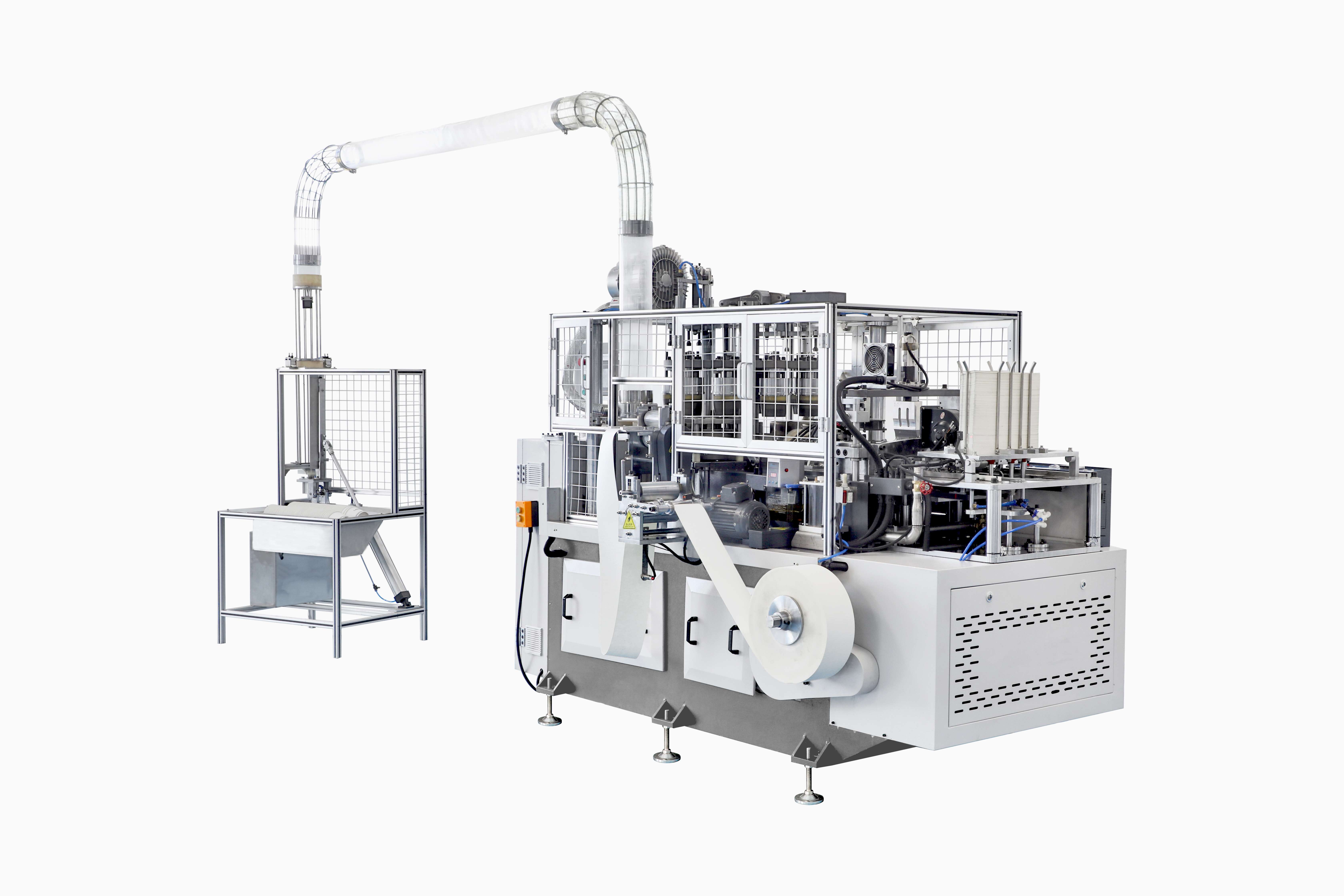

RW-W100 Fully Automatic Paper Bowl Forming Machine
Introduction:
HM-W100 fully automatic paper bowl forming machine specialized equipment for producing different sizes bowl, can be used for noodles, rice, soup etc. package. With fast speed, less time and labor saving. We can make molds according to customer’s requirements, and this model machine has a wide range of scope application bowl sizes, is the best choice for paper bowl machines at present.
|
Model |
HM-W100 |
|
Bowl’s capacity |
4-24 OZ |
|
Speed |
80-105pcs/min |
|
Suitable paper weight |
160-300g/㎡ ±20/㎡ |
|
Voltage supply |
380V (220V) 50Hz |
|
Bowl’s range |
Top:90-140mm Height:50-110mm |
|
Working air source |
0.4-0.6Mpa 0.4m³/min |
|
Total power |
6KW |
|
Weight |
3800KGS |
|
Measurement（L×W×H） |
Machine:2600mm×1600mm×1800mm |
|
Cup storage rack(100kgs): |
|
|
Cup wall sealing |
Evergreen ultrasonic |
|
Bottom knurling |
Blowing heating system |
|
Can customize molds according to customer requirements |
|
Main Configuration:
|
Item |
Main Parts |
Origin |
|
1. |
Touch Screen |
TAIWAN Delta |
|
2. |
Temperature Mold |
KOREA AUTONICS |
|
3. |
PLC |
TAIWAN Delta |
|
4. |
Embossing Motor |
SHANGHAI |
|
5. |
Bottom Feeding Motor |
HANGZHOU |
|
6. |
Power Supply |
CHINT |
|
7. |
Driving Scored Pulley |
SHANGDONG |
|
8. |
Ultrasonic |
ZHEJIANG |
|
9. |
Pneumatic Element |
ZHEJIANG |
