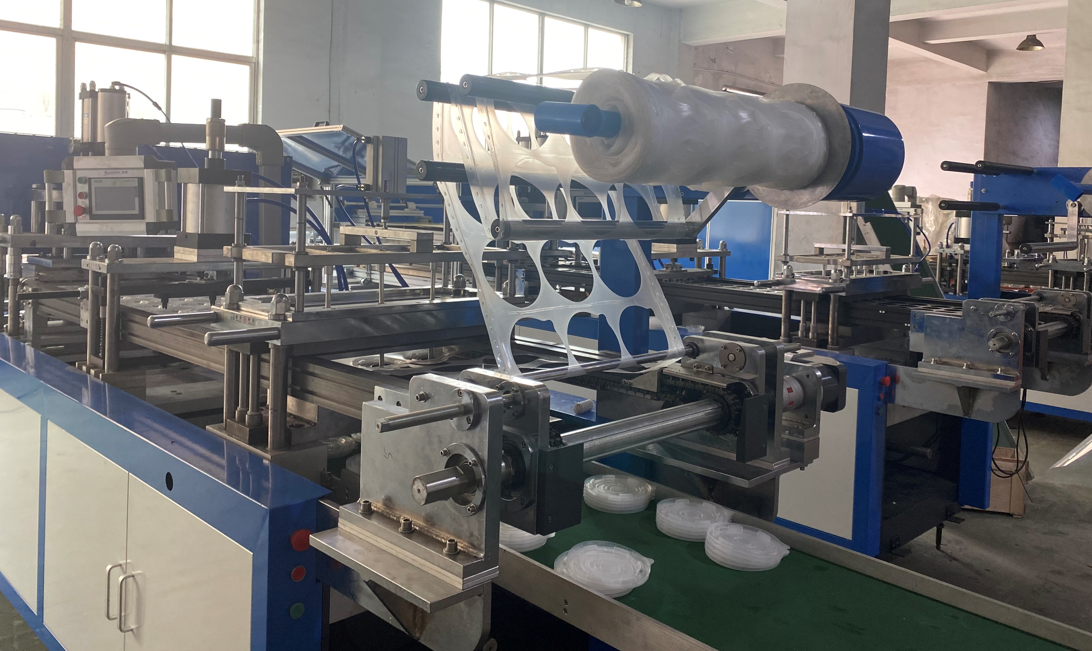

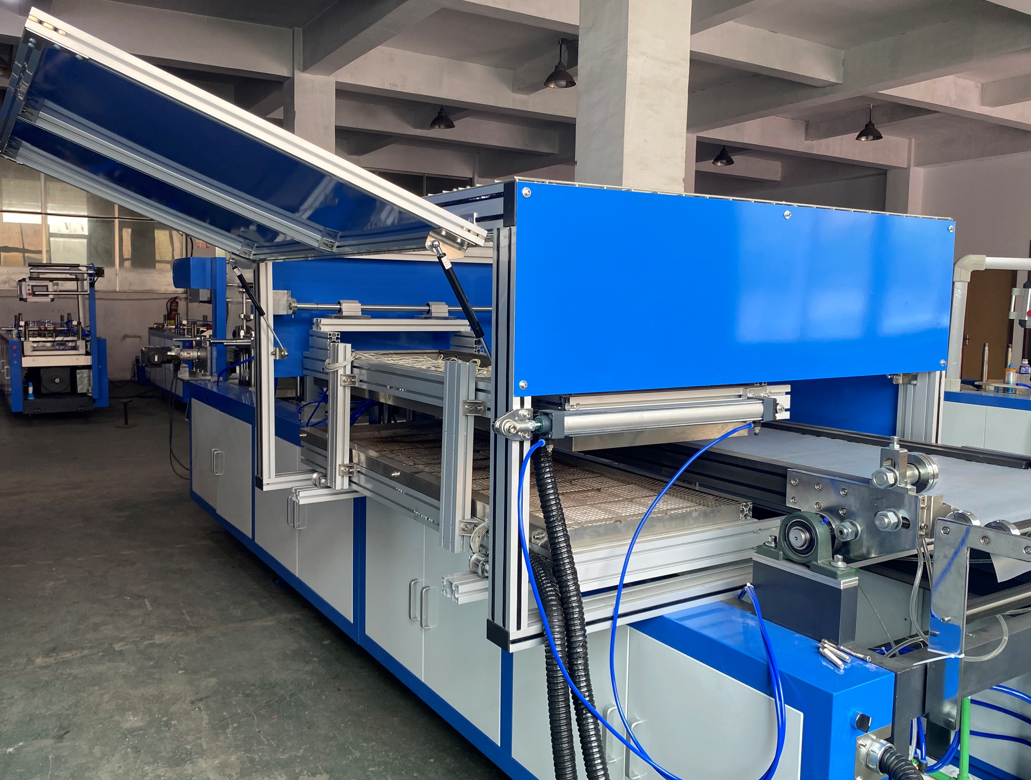

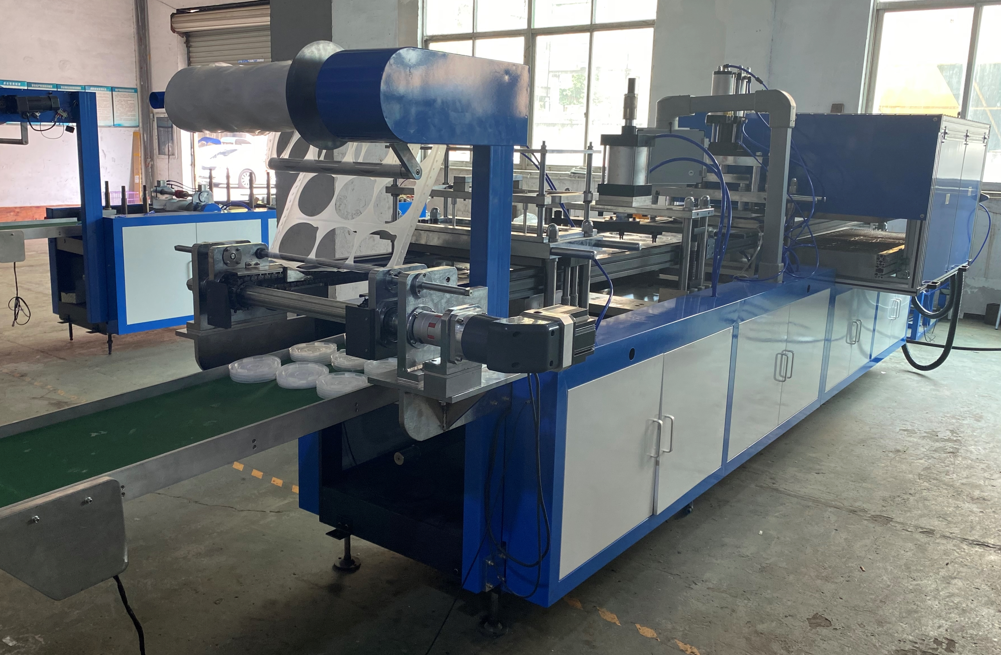

RW-530 Automatic Plastic Thermoforming Machine
Suitable Range:
Production of PP, pet, PS, PVC and other coiled materials, such as plastic cup cover, tray, food, hardware and other packaging products.
Features:
■ PLC automatic control system, variable frequency speed regulation
■ Man machine interface operation
■ Servo motor feeding is more accurate
■ No cross contamination, one-time finished products
|
Speed |
10-25 modulus / min |
|
Production materials |
PP,PET,HIPS,PVC |
|
Total power |
24KW |
|
Mold cooling water |
Cooling tap water or circulating water consumption: 60L / h |
|
Maximum sheet width |
530mm |
|
Maximum forming area |
450*260mm |
|
Maximum forming depth |
50mm |
|
Package size |
5500*1500*1900mm |
|
Machine weight |
3200kg |
Main Configration:
|
Name |
Model |
Origin |
|
Air-break Switch |
DZ47-63/3 C40 |
China |
|
Switching Power Supply |
S-35-24 |
Taiwan Mean Well |
|
Solid-state Relay |
SSR-40DA |
China |
|
Over Voltage-Under Voltage Protection |
RDX16-63CQ |
China |
|
Midget Relay |
MY4NJ/24V |
France Schneider |
|
Wiring Terminal |
JF5-6/5 40A |
China |
|
Wiring Terminal |
JF5-25A |
China |
|
Wiring Terminal |
JF-10A |
China |
|
Encoder |
Sick |
Germany |
|
Temperature Module |
WLN7 |
China |
|
Switch Button |
XB2BA31C |
France Schneider |
|
Switch Button |
XB2BS54C |
France Schneider |
|
Amplifier |
8 Enter 8 Outer |
China |
|
Colling Plate |
Heat sink |
China |
|
Frequency Converter |
FC51---3KW |
Denmark Danfoss |
|
Controller |
214XP |
Siemens |
|
Touch Screen |
Weinview |
Taiwan |
|
Servo Motor |
Panasonic |
Japan |
|
Speed Reducer |
|
Taiwan Liming |
 |
 |
 |
 |
 |
