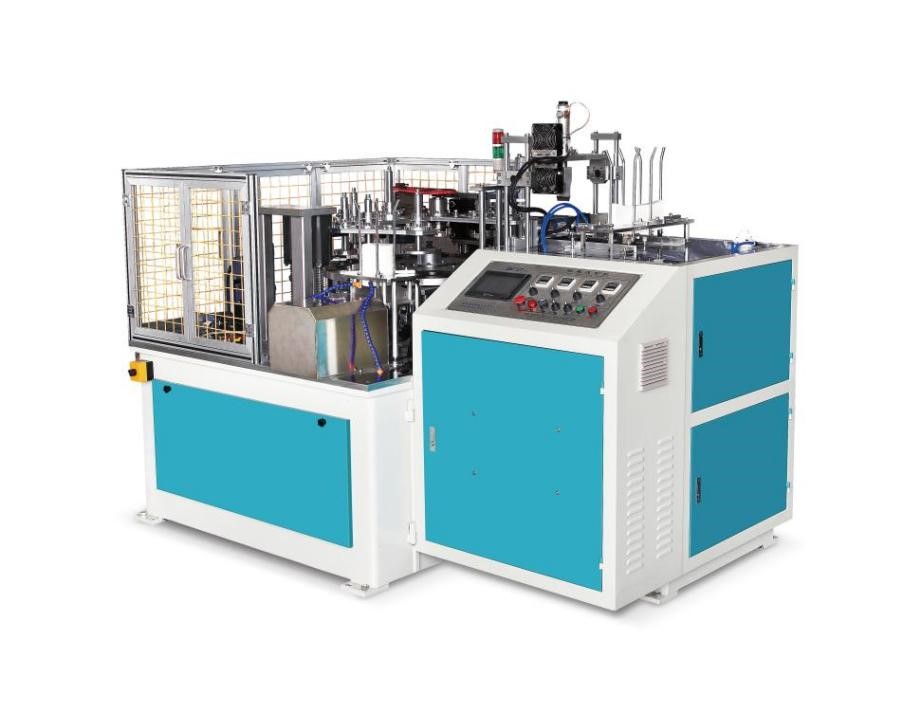

1.The automatic paper cover forming machine is developed based on the full absorption of the latest Korean and German-style paper cover machines according to the domestic situation. It fully fills the gaps in the domestic paper cover machines and is a patented product of our company.

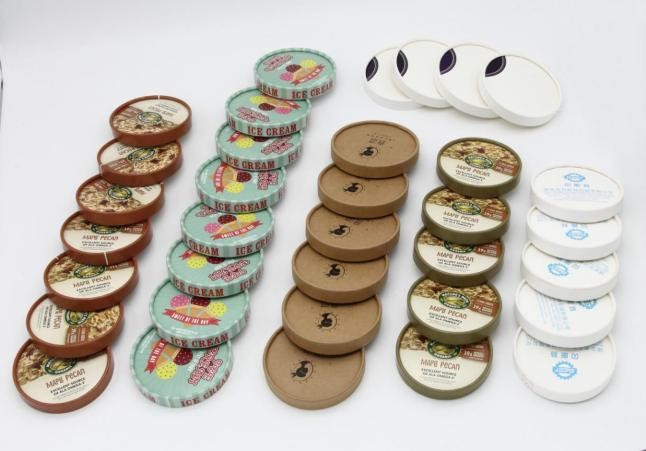

2.The automatic paper lid forming machine is an ideal equipment for producing paper container lids such as paper soup bowl lids, instant noodle bowl lids, coffee cup lids, and ice cream paper cup lids. The automatic paper cover forming machine is easy to operate, stable in performance, small in area, and high in efficiency. It is the first choice for investment and entrepreneurship. Our company accepts custom paper covers of various specifications from customers.
The body is made of high-quality materials with high strength.
The structure runs smoothly, the molding is stable, and the noise is low.
The safety protection system is reliable.
Double cover can put two pieces directly on the machine (the second system device is optional)
|
Paper cover specifications |
height (14-20) mm |
|
speed |
60/PCS per minute |
|
Applicable paper |
single and double PE/PLA coated paper, coated paper, glazing coated paper (250-480g/m2) |
|
Power |
6.5kw |
|
Power supply |
AC380V 3-phase, 50Hz |
|
Working air source |
air consumption 0.12 cubic meters per minute, working air pressure 0.4MPa |
|
Overall weight |
3000KG |
|
Dimensions |
2350*1700*1850mm |
