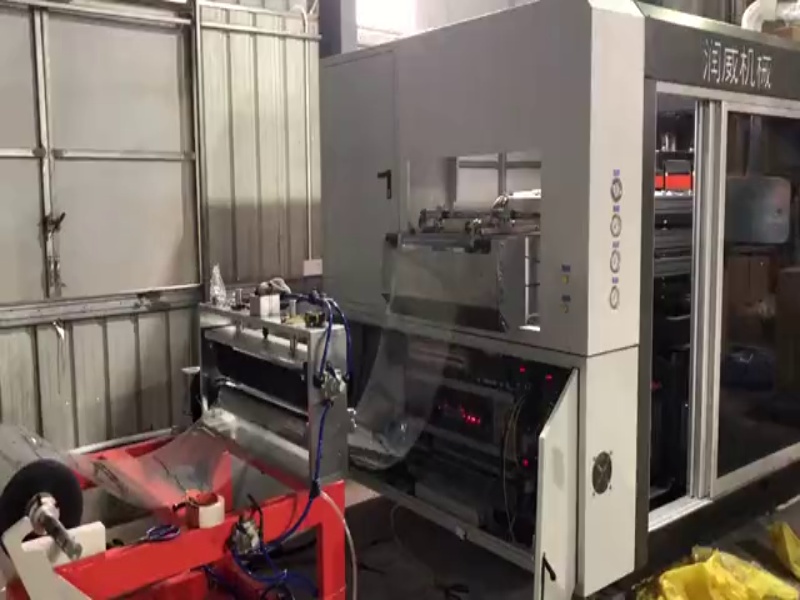

RWS-800 Positive and Negative Pressure Station Thermoforming Machine
Suitable Range:

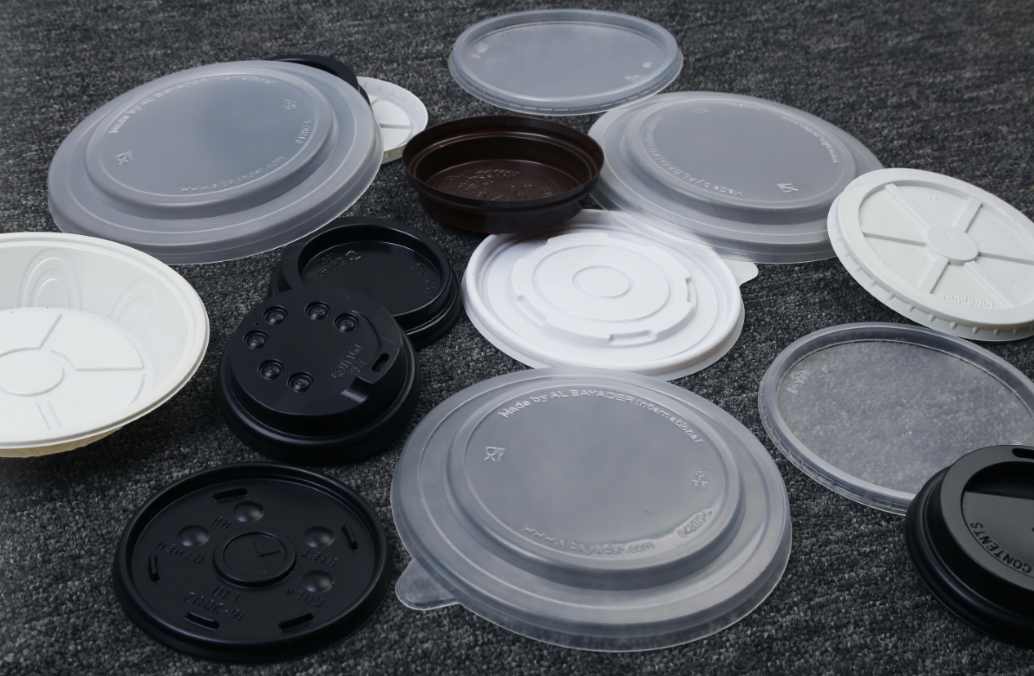

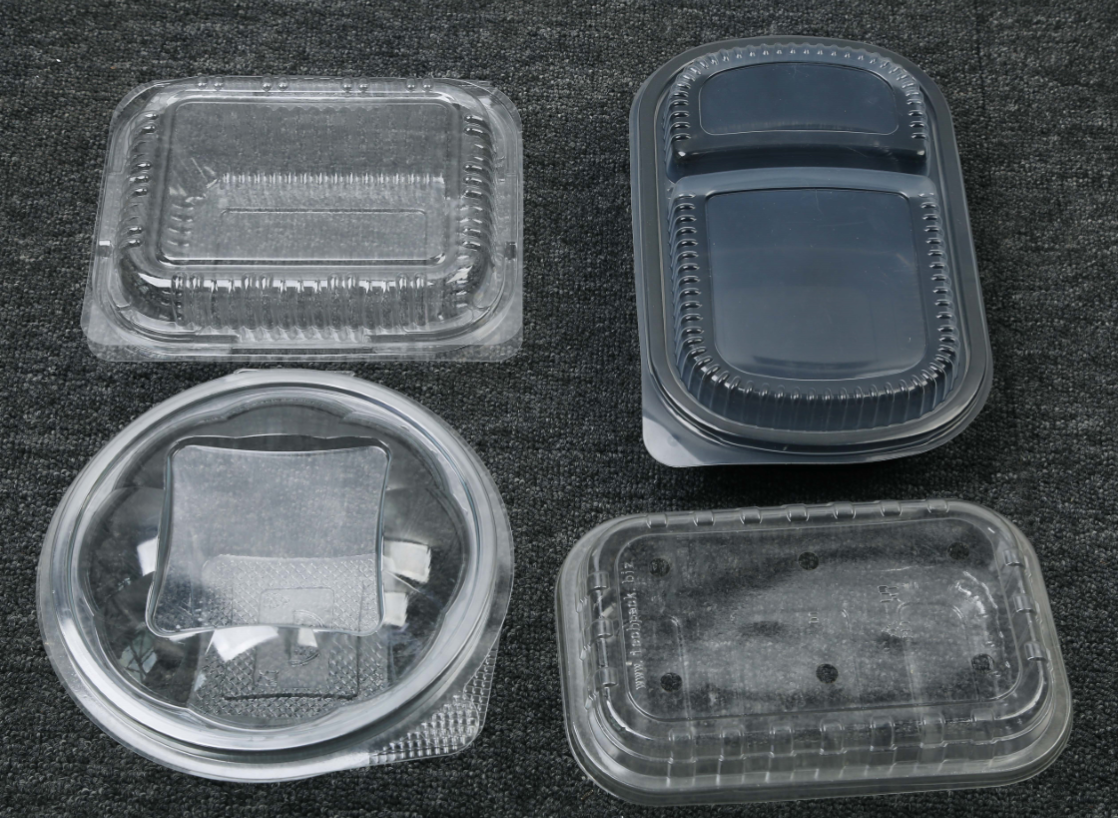

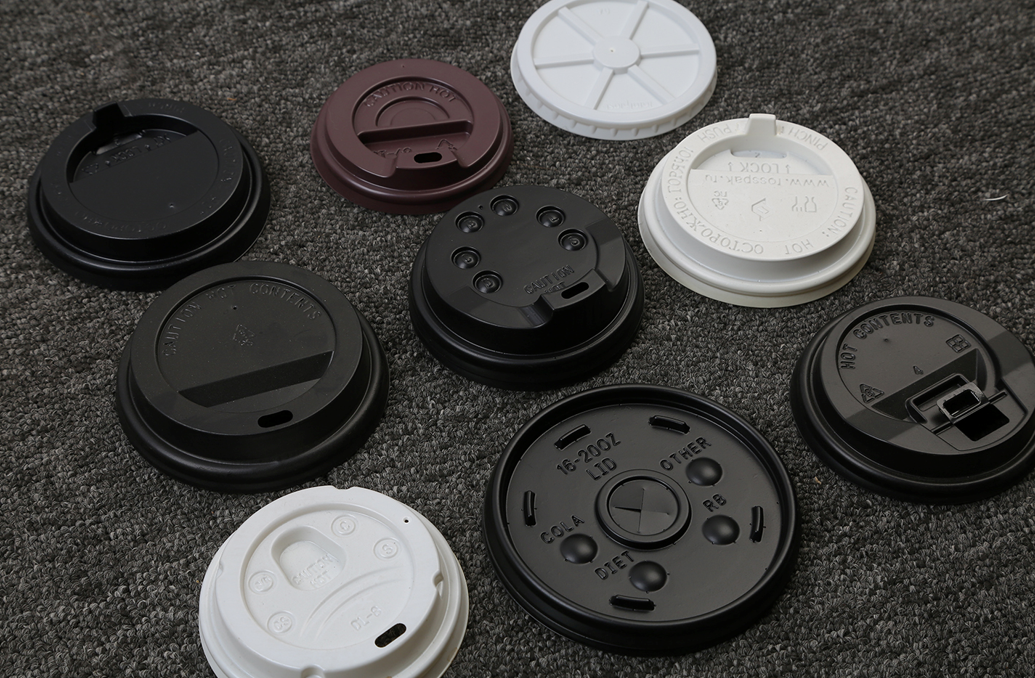

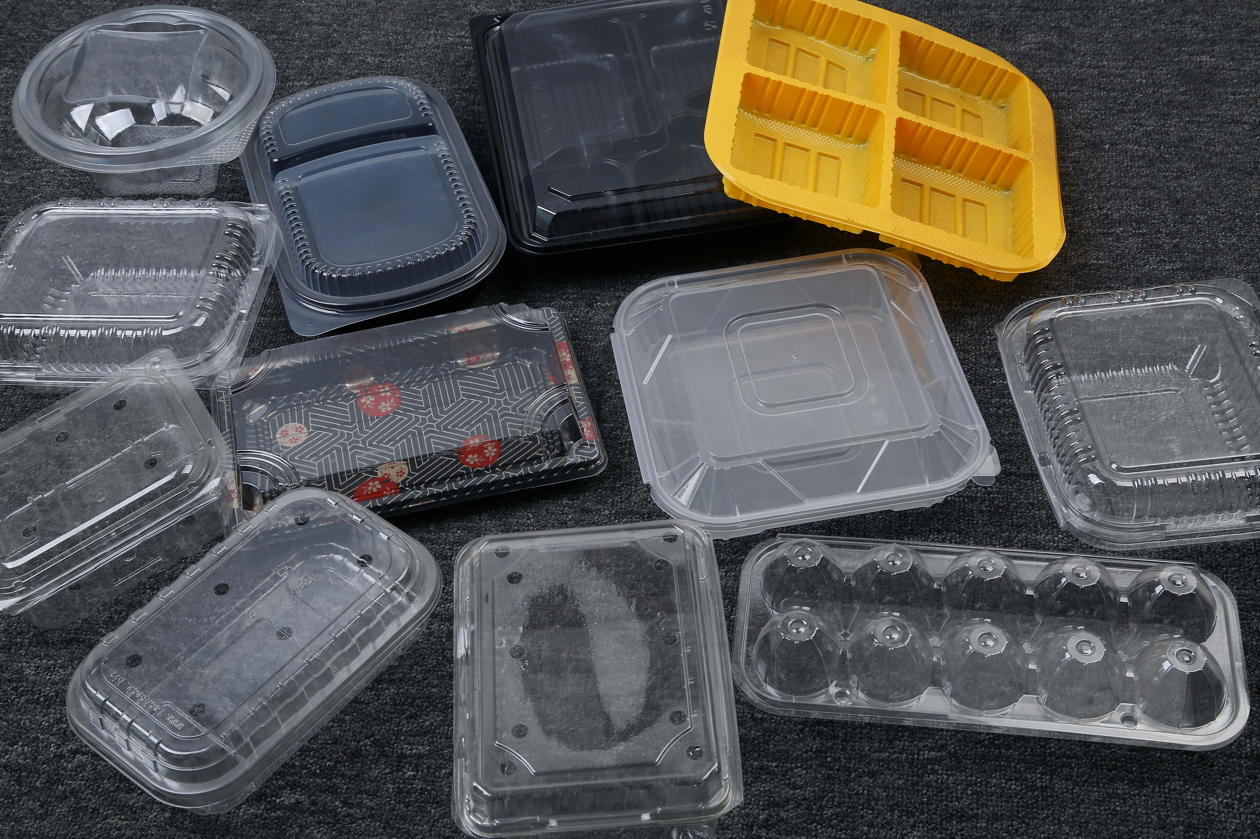

The machine using upper and lower oven heating to reduce heating time and accelerate molding speed. It is Mainly suitable for forming hips, PS, PVC, Pet, PP and other plastic sheets, producing various boxes, trays, snack boxes, plates, covers, biscuit trays, mobile phone trays and other blister packaging.
Features:
■ PLC automatic control system, easy operation
■ Adopt upper and lower oven heating to speed up molding
■ Closed heating box for stability
■ With vacuum forming, expand the scope of application
|
Maximum blanking speed |
10-30min |
|
Maximum forming width |
660mm |
|
Heating power of forming up and down |
60kw |
|
Power supply and total power |
380V 50Hz（220V 60Hz） |
|
Material width |
≤660mm |
|
Feed stroke optional range |
200-420mm |
|
Maximum forming depth |
Largest 100mm |
|
Total power |
76KW |
|
Water supply pressure |
0.2Mpa |
|
Overall weight |
8.5T |
|
Water consumption |
0.3m³/h |
|
Volume flow of air pump |
≥0.2m³/min |
|
Vpressure |
0.6-0.75Mpa |
|
Overall dimensions（L×W×H） |
9.5m×2.1m×2.4m |
Machine Drawing for Reference:
|
Item |
Name |
Origin |
Qty |
|
1 |
Vacuum Air Pump |
Shanghai |
1 |
|
2 |
Touch Screen |
Taiwan Delta |
1 |
|
3 |
PLC Module |
Taiwan Delta |
1 |
|
4 |
Control Relay |
France Schneider |
5 |
|
5 |
Actuating Cylinder |
Airtac |
10 |
|
6 |
Electromagnetic Valve |
Airtac |
10 |
|
7 |
Temperature Module |
Changzhou |
5 |
|
8 |
Water Oil Separator |
Airtac |
1 |
|
9 |
Forming Servo Control |
Taiwan Delta |
3 |
|
10 |
Punching Servo Control= |
Taiwan Delta |
2 |
|
11 |
Cutting Servo Control |
Taiwan Delta |
2 |
|
12 |
Material Pulling Servo Control |
Taiwan Delta |
1 |
|
13 |
Stacking Upper and Lower Servo Control |
Taiwan Delta |
1 |
|
14 |
AC Contactor |
France Schneider |
3 |
|
15 |
Vacuum Pump |
China |
1 |
|
16 |
Lead Rail |
Aluminum Alloy Chain Guide Rail |
2 |
|
17 |
Material Pulling China |
Tine Chain Conveyor |
2 |
|
18 |
Main Frame |
Machine Base Channel Steel, Steel Plate |
|
|
19 |
Feeding System |
Double Rod Automatic Feeding and Exchange |
|
|
20 |
Auto Stacking System |
Counting Auto Stacking |
|
|
21 |
Punching Method |
Servo Screw+Laser Die |
|
|
22 |
Vacuum Air Tank |
Standard |
|
|
23 |
Body Sheet Metal |
Paint Treatment |
|
|
24 |
Finished Product Delivery |
Auto Delivery |
|
|
25 |
Refueling Way |
Automatic Lubrication Quantitative Oil Supply |
 |
 |
 |
 |
