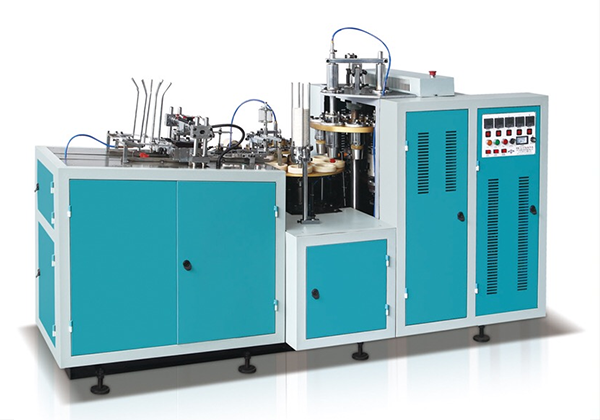

WT-DL12 automatic single-sided paper cup-making machine is a multi-station automatic molding machine, it has automatic paper feeding, sealing (cup wall adhesion), filling, filling the bottom, heating, rolling flower, roll edge by continuous process and photoelectric detection, fault alarm, counting functions, it is the best equipment for producing paper drinking cups, tea cups, coffee cups, advertising cups, ice cream cups or other cone food containers.
WT-DL12 paper cup-making machine is mainly used for the production of single PE-coated paper cups (from 3 ounces to 12 ounces), wide application for supermarkets, restaurants, offices, homes, and so on, and also can be used as advertising paper cups.
Machine Advantage

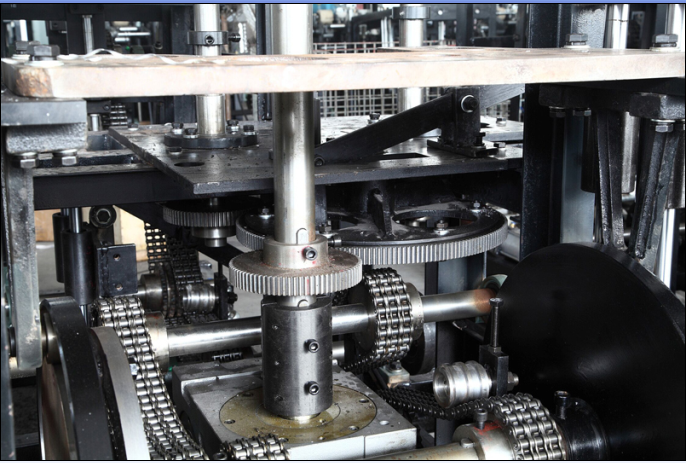

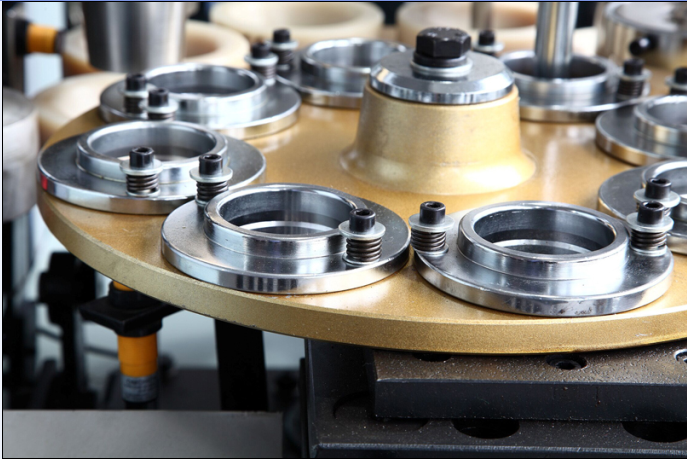

frame is an inclined frame, with a cup dropping rate of 99.99%, this machine use gear instead of a chain, which improves transmission stability, Make up the chain drive congenitally deficient, and Greatly enhances the power of the machine. Durable, good maintenance, etc. The biggest advantage is that the mold plate, nylon wheel, and chassis are all made of aluminum materials, which is light with high cost. Good anti-turntable inertia with long life. It is more durable according to other iron machine.
|
General Power |
4kw |
|
Paper Request |
150-400g/m²(single PE coated paper) |
|
Voltage Supply |
220V50HZ / 380V50HZ or customized |
|
paper cup specification |
2.5-9oz(Other specifications can be customized) |
|
Speed |
50-60pcs/min |
|
Weight |
1300KGS |
|
Machine Measurement |
2555*1250*1680mm |
|
woodenbox Measurement |
2530*1120*1800mm |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
