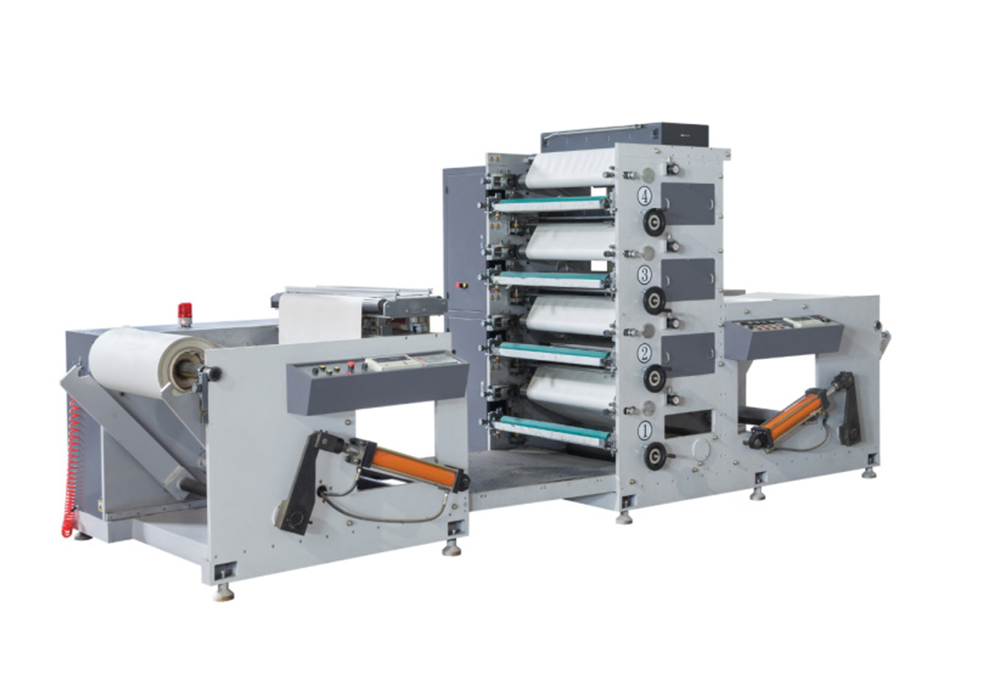

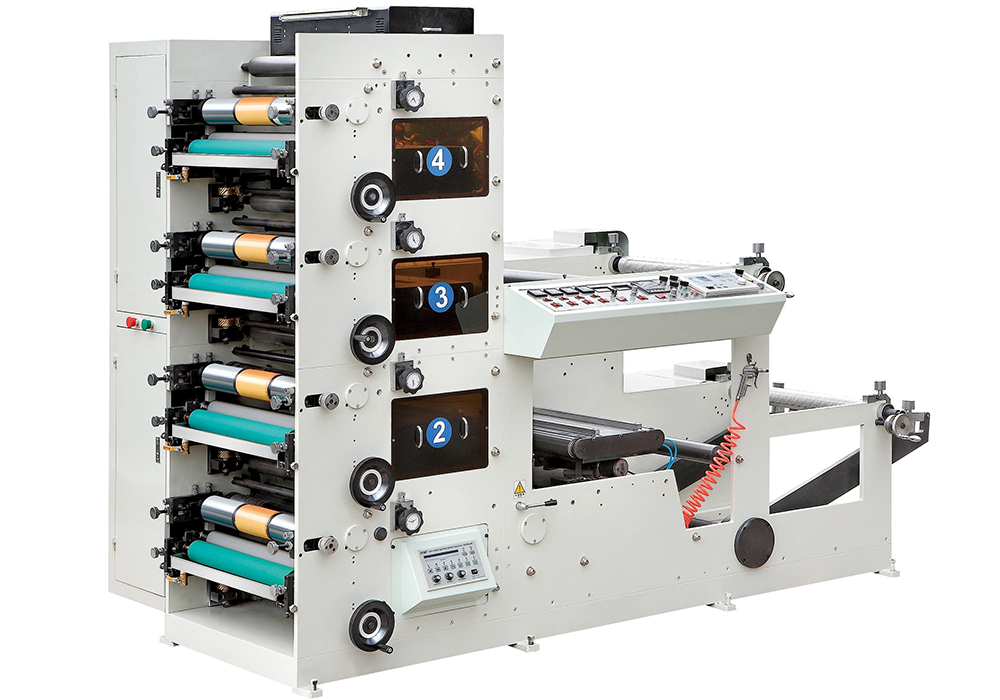

RW-41200 Flexo Printing Machine

Email: info@cuplidmachine.com

Tel: +86-18106728031

Whatsapp: +86-18106728031

RW-41200 Flexo Printing Machine

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Characteristics

1.The main motor adopts frequency conversion stepless speed regulation.

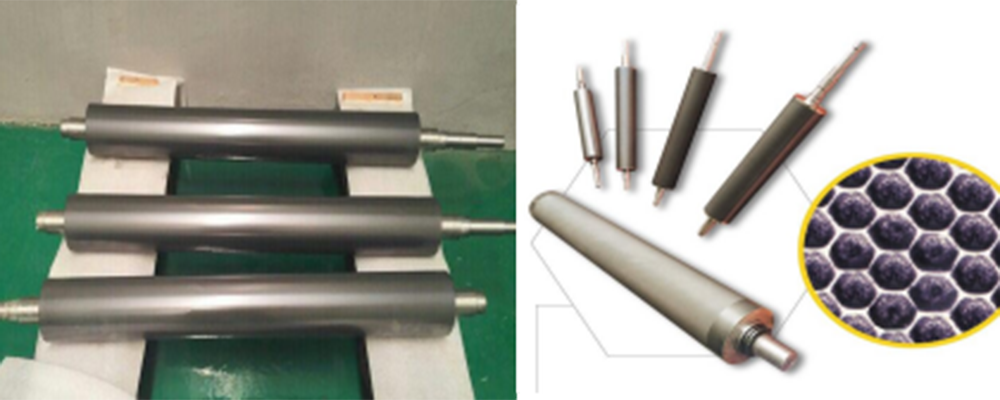

2.Theceramic anilox roller transfers ink, with uniform hue, wear resistance, rust resistance, and long service life.

3.The feedingand unwinding shaft adopts the wind Conveniently load and unload coils.

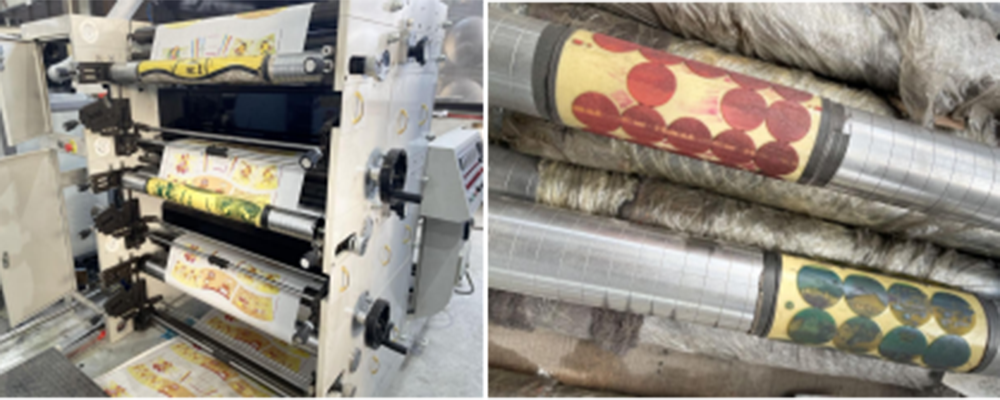

4.Theprinting unit adopts the function of registering, and each unit can be printed

5.When the host machine stops, the ink roller will be separated automatically and still run at low speed to avoidink

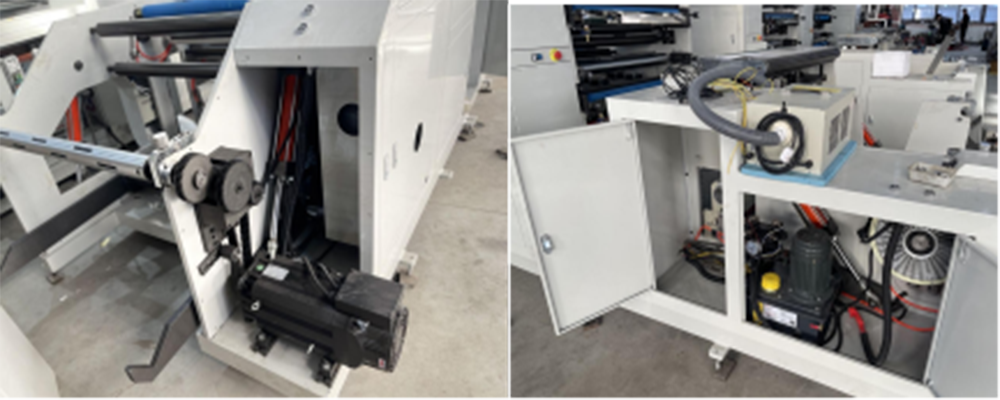

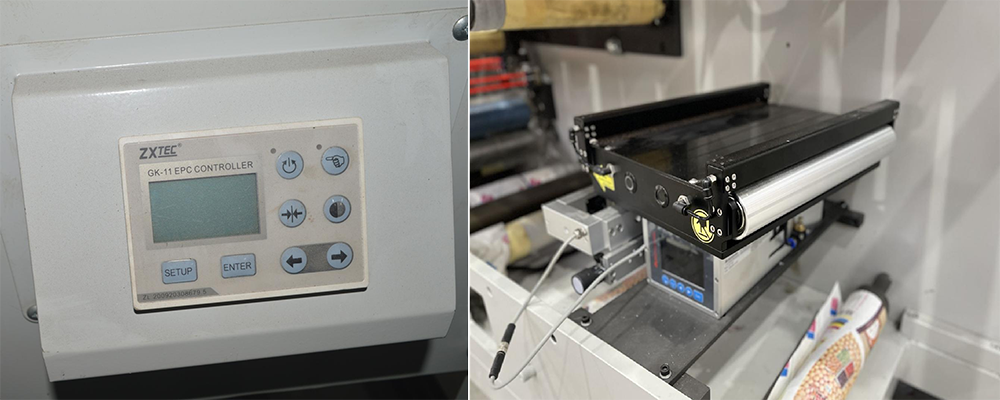

6.Unwinding and rewinding are controlled by the tension control system (tension sensor, magnetic powder brake, clutch, tension controller).

7.Equipped withdie-cutting station, printing and die-cutting can be completed in one machine.

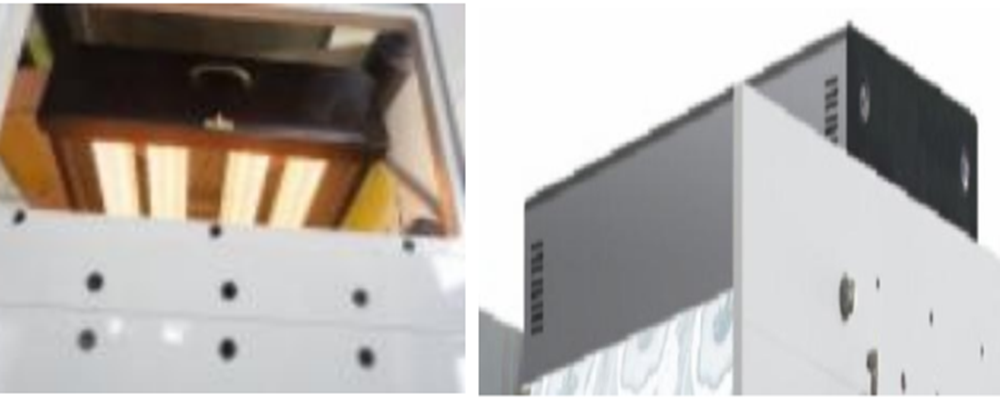

8.Equipped with UV drying

9.Feeding, printing, glazing, drying, die-cutting, waste collection and rewinding can be completed at one time.

Technical parameter

Model	WT-4850	WT-41200
Printing speed	50m-80M/MIN	50-60M/MIN
Printing color	4 COLORS	4 COLORS
Print max width	850MM	1200MM
Unwind roll width	860MM	1220MM
Unwind roll diameter	1200MM	1300MM
Rewind roll max diameter	1200MM	1300MM
Printing length	175-380MM	175-380MM
Registering accuracy	±0.15MM	±0.15MM
Voltage	380V±10%	380V±10%
Total power	35KW	38KW
Air press	0.6MP	0.6MP
Oil system	Semi-automatic	Semi-automatic
Weight	3500KG	4000KG
Dimension(MM)	3200X1850X2250	3200X2100X2250

Standard configuration

Adjust speed motor	150W	250W
Main motor	5.5KW	7.5KW
Torque motor	10N/M 4 pcs rubber roller	20N/M
Magnetic clutch	10N/M 4 pcs doctor blade	20N/M
Magnetic break	10N/M 4 pcs ink fountain	20N/M
Rewind automatic tension control	√	√
Unwind automatic tension control	√	√
Frequency converter	5.5KW	7.5KW
Gear motor	200W	250W
IR dry	4 SETS	4 SETS
Rewind, unwind hydraulic system	1 SET	1 SET
AC contactor	√	√
Button	√	√
Temp control	4 UNITS	4 UNITS
Tool box	1 SET	1 SET
